Macmic IGBT Modules: Ensuring Uninterrupted Power with Advanced UPS Technology
Uninterruptible Power Supply (UPS) systems are the critical backbone of modern infrastructure, providing continuous, stable power to protect sensitive equipment and ensure operational continuity. Macmic Technology’s IGBT modules serve as the core power switching devices in these systems, delivering the reliability and performance that data centers, medical facilities, and industrial operations depend on.
The Critical Role of IGBT Modules in UPS Systems

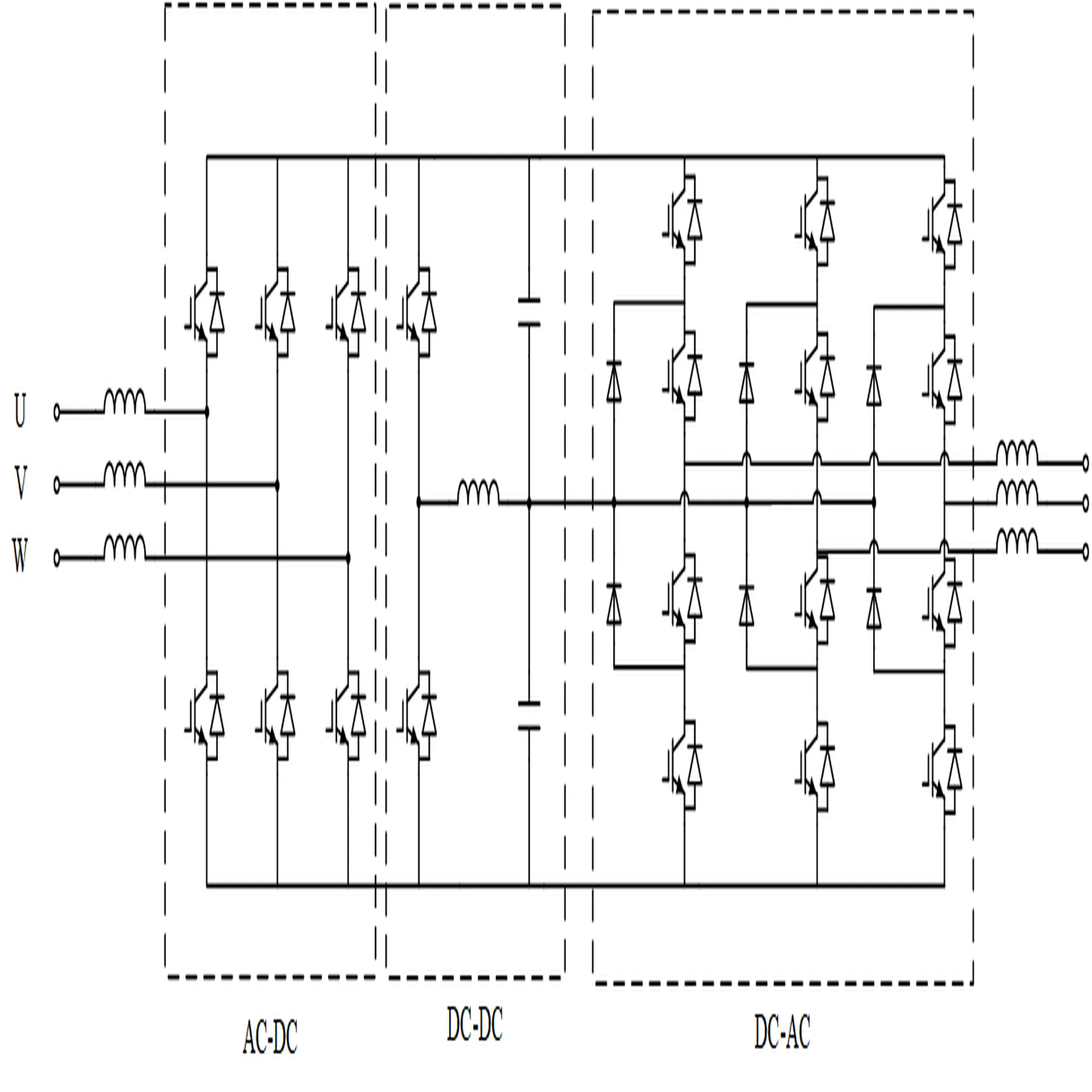

UPS systems perform the essential function of providing seamless power continuity during utility power interruptions. The IGBT modules within UPS systems handle multiple critical operations: converting AC to DC for battery charging, converting DC back to AC for load supply during outages, and managing power factor correction during normal operation. Macmic’s IGBT modules are specifically designed to excel in these demanding applications:
High Reliability: UPS systems must operate flawlessly for years without interruption. Macmic’s IGBT modules, built with the company’s proven M7i chip technology, deliver the long-term reliability essential for critical power protection.
Fast Switching Response: When utility power fails, the UPS must switch to battery power within milliseconds. Macmic’s IGBT modules provide the fast switching capability needed for seamless power transition, ensuring no disruption to connected loads.
High Efficiency: In online double-conversion UPS systems, power flows through the inverter continuously. Macmic’s low-loss IGBT technology minimizes energy waste, reducing operating costs and cooling requirements in data center environments.
UPS Application Requirements and Industry Demand
UPS systems serve critical applications across multiple industries. In industrial automation control systems, UPS protects precision instruments and ensures safe shutdown procedures. In data centers, UPS provides stable power to servers, preventing data loss and service interruptions during power anomalies. In healthcare, UPS guarantees continuous operation of life-critical medical equipment during power transitions.
The growing demand for data center capacity, driven by cloud computing and artificial intelligence, is increasing the need for high-power UPS systems. Macmic Technology’s IGBT modules, with current ratings up to 600A and voltage ratings up to 1700V, provide the power handling capability required for these large-scale UPS installations.
Macmic’s IGBT Product Solutions for UPS
Macmic offers specific IGBT module and discrete device solutions optimized for UPS applications:
IGBT Modules: The MMG200CE065PD6T7 (650V/200A, GCE package, PD topology) is specifically recommended for UPS power conversion stages. This module provides the balanced performance characteristics needed for both charging and inverting operations.
FRD Discrete Devices: Complementing the IGBT modules, Macmic’s FRD (Fast Recovery Diode) discrete devices handle the freewheeling current paths in UPS circuits. The product range includes 600V devices (MM30FU060B at 30A, MM60FU060B at 60A, MM75F60B at 75A) and 1200V devices (MM15FU120K at 15A, MM8FU120K at 8A) in TO-247 and TO-220 packages.
Technical Innovation for Next-Generation UPS
Macmic Technology continues to advance its power semiconductor technology to meet the evolving demands of UPS applications. The company’s GV IGBT module series features the M7i micro-trench chip technology with unique pinfin design for high thermal conductivity substrates, delivering improved heat dissipation that is critical for the continuous duty cycles typical in UPS operation.
The IcyPack series DSC dual-sided cooling modules represent another innovation relevant to UPS applications. By providing dual-sided heat dissipation and integrating current and temperature sensors for precise device monitoring, these modules enable more compact and intelligent UPS designs that can proactively manage thermal conditions and predict maintenance needs.
Comprehensive Power Semiconductor Solutions
Beyond UPS systems, Macmic Technology’s IGBT modules serve a broad spectrum of power supply and energy conversion applications. The company’s products are deployed in industrial power supplies, power quality equipment, high-voltage variable frequency drives, and static var generators (SVG). This broad application expertise enables Macmic to bring cross-domain innovations to UPS design, benefiting from technology advancements developed for adjacent power electronics applications.
With its comprehensive product portfolio, proven chip technology, and deep understanding of power conversion requirements, Macmic Technology provides UPS manufacturers with the reliable, high-performance IGBT solutions needed to protect critical infrastructure in an increasingly power-dependent world.
