Description

• Application: DC Circuit Breaker, Railway Power Supply, Locomotive Traction, Medium VoltageDevice
• Max power device voltage: 4500V
• Max Switching Frequency: 10kHz
• GateTurn-onVoltage: 15V
• GateTurn-offVoltage: -10V
• GateDrive power: 6W
• GateDriveCurrent: ±50A
• Supply Voltage: 18V~25V
• Power SupplyPower SupplyMaxCurrent: 300mA
• Temperature: -40~+85℃
• Isolation Voltage: 10000Vac
• Features: Single-channel IGBT driver; Compatible4500VWithUnderPackageIGBTModule; WidePower SupplyInput Voltage18V~25V; Power SupplyReverseProtection; PWMSignalOptical fiber signal input; Integrated isolated DC/DC power supply; IntegratedPower SupplyUnder Voltage Protection; IntegratedHasSource; IntegratedVCEShort Circuit Protection; IntegratedTurn-off
• Description: 1QP0650V45-QAdoptsASICChipGroupCPLDChipDesignGroupFormSingle-channel, LargePower, HighVoltage, CompactTypeDriver, 4500VWithUnderPackageIGBTModuleDesignForm, Driver CoresBoardInPowerSingleOutsideOrDesignOn

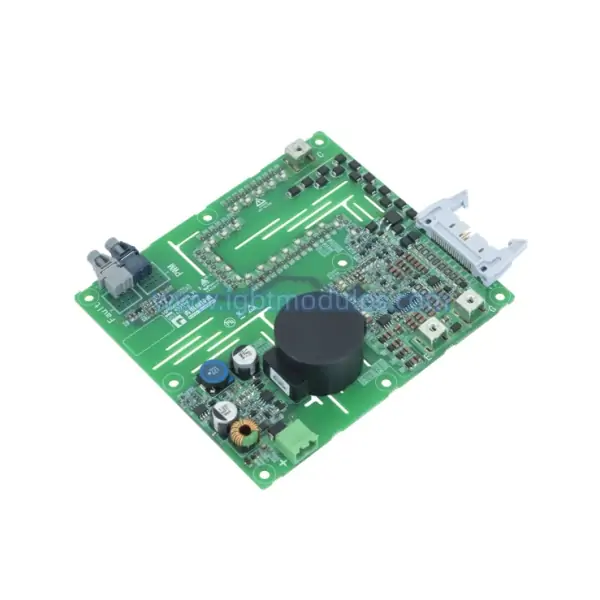

• Model: 1QP0650V45-Q
• PowerDeviceVoltage（V）PowerDeviceVoltageVV: 4500
• PowerDevicePowerDeviceIGBTSiC: IGBT
• ChannelNumberChannelNumber: 1
• ModuleParallelNumberQuantityModuleParallelNumberQuantity: 1
• Output Power（W）Output Power（W）WW: 6
• MaxOutput Current（A）MaxOutput Current（A）AA: 300
• Max Switching Frequency（kHz）Max Switching Frequency（kHz）kHzkHz: 10
• Operating Ambient Temperature（℃）Operating Ambient Temperature（℃）℃℃: -40~85
