Description

• Features: 6W, for Linpak, XHP, etc.; 2-level topology; SSD, UVLO, Miller clamping, Isolate NTC sampling
• Paralleling Supported: 4
• Gate Turn-on Voltage: 15V
• Gate Turn-off Voltage: -5V
• Power-Ouput/Channels(Max): 6W
• Driving Mode: Direct
• Max Switching Frequency: 100kHz
• Description: 2FHC06M33XX
• 6W, for Linpak, XHP, etc.
• 2-level topology
• SSD, UVLO, Miller clamping, Isolate NTC sampling

• Product Details: Product Description
Resources
Product Details

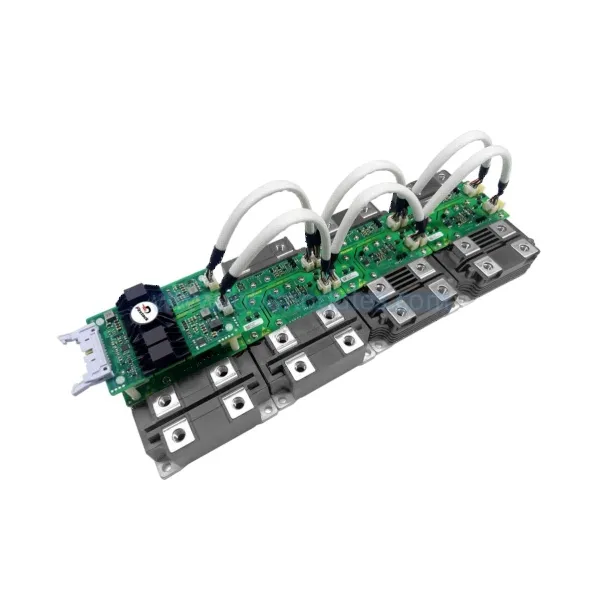

The 2FHC06M33XX gate driver core is designed for 3300V Linpak/XHP-2/LV100 SiC MOSFET with 15~20V positive gate voltage and -2~-8V negative gate voltage in
