Description

• Features: 1.2W/20A,for EconoDual; 2-level topology; Optical interface; SSD, Active clamping
• Max Breakdown Voltage: 1700V
• Interface Type: Optical
• Driving Mode: Direct
• PWM: 15V
• Max Switching Frequency: 50kHz
• RGON: 33/8Ω
• RGOFF: 51/8Ω
• Power-Output/Channels(Max): 1.2W
• PWM: 5V / 15V
• RGON: 20/8Ω
• RGOFF: 39/8Ω
• Description: 2FHD0115V
• 1.2W/20A,for EconoDual
• 2-level topology
• Optical interface
• SSD, Active clamping

• Product Details: Product Description
Resources
Product Details

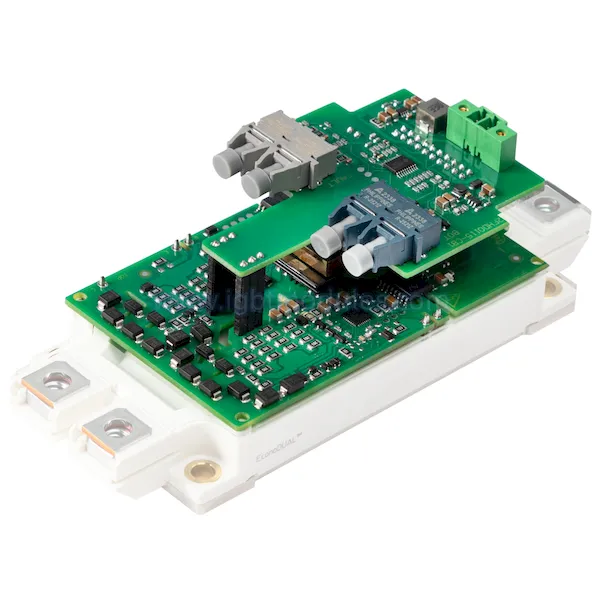

The plug-and-play 2FHD0115V gate driver is based on Firstack intelligent chip technology. It supports the operation of up to 1700V EconoDUAL
TM
IGBT power
