Description

• Application: High-voltage analog switching (printers, medical imaging, test equipment)
• ch: 16
• Power supply voltage (V) VDD: 3.3 or 5
• VNN: -160 / to 0
• VPP: 40 to / VNN+200
• VPP-VNN(V): 220
• Signal voltagerange (V): VNN to / VPP
• Switch ONresistance(ohm): 19
• Clock frequency(MHz): 20MAX. @VDD = 3.3V, / 30MAX. @ VDD = 5V
• Bleed resistor: Yes / (*4)
• Diode(*1): Yes
• RoHSstatus: Compliant
• MSLRating(*2): 2

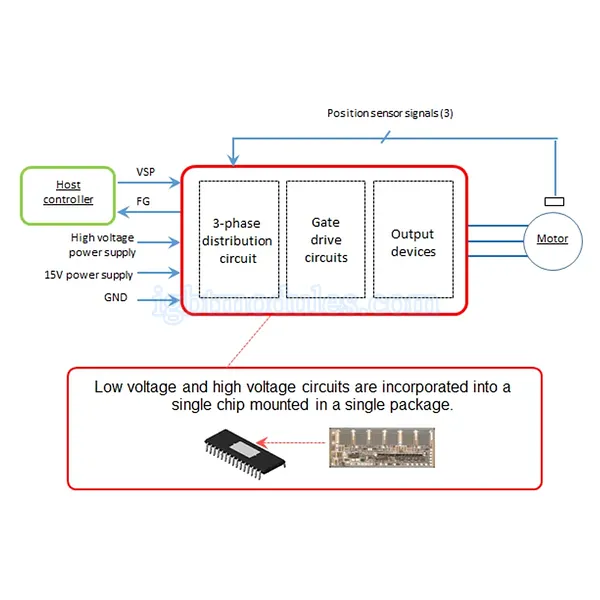

• System Configuration
