Description

• Features: 4W/110A; Multi-parallel of 3-level NPC/ANPC topology; SSD, UVLO, Fault sequence, NTC detection
• Supported Module (s): ED, PM, XHP, 62mm
• Gate Turn-on Voltage: 15V
• Gate Turn-off Voltage: -15V
• Power-Ouput/Channels(Max): 4W
• Interface Type: Electrical
• Max Switching Frequency: 20kHz
• Logic Input Voltage: 15V
• Supply Voltage: 15V
• Connection Type to IGBT: Cable + Adaptor board
• Temperature-operating (Max): 85℃
• Temperature-operating (Min): -40℃
• Description: ED-WP-CB
• 4W/110A
• Multi-parallel of 3-level NPC/ANPC topology
• SSD, UVLO, Fault sequence, NTC detection

• Product Details: Product Description
Resources
Product Details

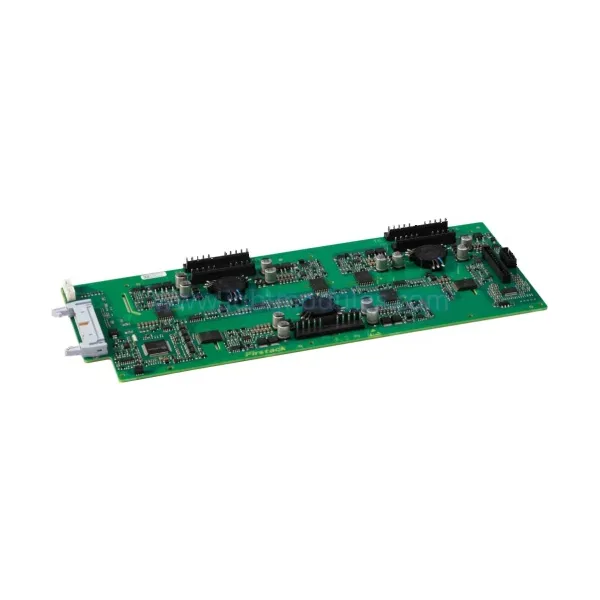

The ED-WP-CB is a high-performance digital gate driver core developed by Firstack for NPC I-type 3-level system. It supports the operation of up to 1700V
