Description

• Isolation Voltage: 15kVrms
• Power: 8W
• Input: 14V~25V
• Output: 15V/-10V
• Dimension（L*W*H）: 122mm*69mm*36.4mm

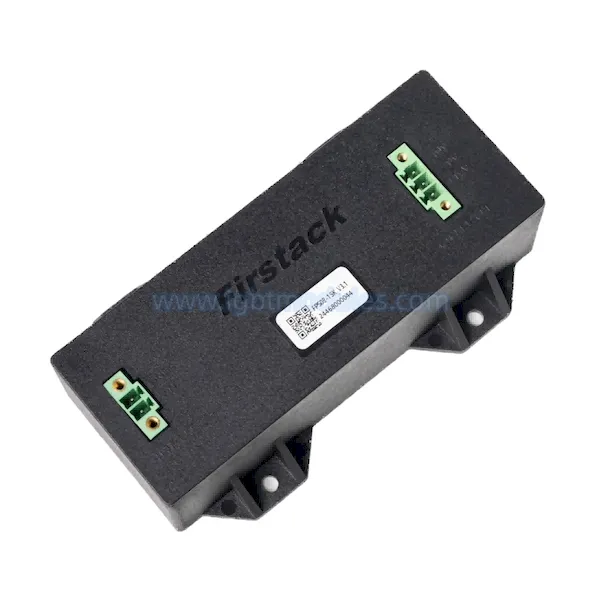

• Description: FPS08-15K
8W isolated DC/DC converter with 5pF coupling capacitance, 60mm creepage distance

• Product Details: Product Description
Resources
Product Details
The FPS08-15K is a dual-channel, high-insulation DC/DC power supply for 3300V, 4500V and 6500V IGBT gate driver power sources. The output voltage is +15V
