CRRC

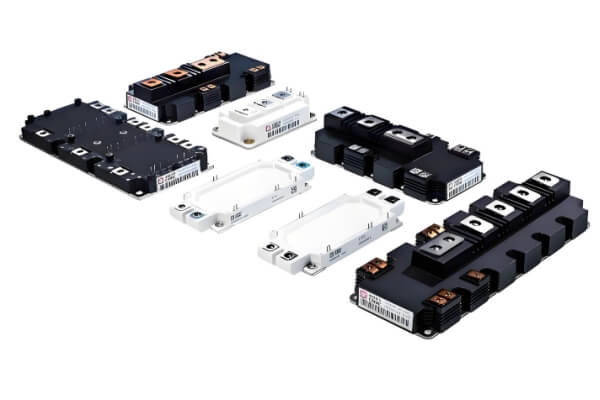

Product Overview:
Covering IGBT products with full voltage levels of 650V-6500V, it has the characteristics of high current density, low switching loss, high short-circuit function, low conduction voltage drop, soft turn off characteristics, and large margin.

Main applications:
It can meet the application needs of multiple fields such as smart grid, rail transit, new energy vehicles, new energy power generation, and industrial control.

Type	A	@TC ℃	VCES V	ICRM A	@IC &TC=25℃ V	@TVJM mJ	TVJM ℃	RthJC IGBT K/W	Code	Dimensions mm	Base Material	Get Quote
TIM750ASM65-PSA011	750	80	6500	1500	3	14280	125	0.0085	AS	19014048	AlSiC	Get Quote
TIM250P2SM65-PSA011	250	80	6500	500	4.2	5034	125	0.026	P2S	1407348	AlSiC	Get Quote
TIM1200ASM45-PSA011	1200	85	4500	2400	2.3	14060	125	0.008	AS	19014048	AlSiC	Get Quote
TIM1200ESM45-PSA011	1200	85	4500	2400	2.3	14060	125	0.008	ES	19014038	AlSiC	Get Quote
TIM800XSM45-PSA011	800	85	4500	1600	2.3	9425	125	0.013	XS	14013048	AlSiC	Get Quote
TIM250PHM33-PSA011	250	100	3300	500	2.5	1375	150	0.048	PH	1407338	AlSiC	Get Quote
TIM500GDM33-PSA011	500	100	3300	1000	2.4	2850	150	0.024	GD	16013038	AlSiC	Get Quote
TIM1000NSM33-PSA011	1000	95	3300	2000	2.4	5770	150	0.012	NS	14013038	AlSiC	Get Quote
TIM1000ECM33-PSA011	1000	95	3300	2000	2.1	6500	150	0.012	EC	19014038	AlSiC	Get Quote
TIM1500ESM33-PSA012	1500	95	3300	3000	2.4	8020	150	0.008	ES	19014038	AlSiC	Get Quote
TIM1500E2SM33-PSA012	1500	95	3300	3000	2.6	7800	150	0.0084	ES	19014038	AlSiC	Get Quote
TIM1600N3SM33-TSA000	1600	100	3300	3200	2.6	7300	150	0.01	N3	14013038	AlSiC	Get Quote
TG450HF33X1-TSA000	450	95	3300	900	2.5	1695	150	0.031	X1	14410040	AlSiC	Get Quote
TIM2400E3SM33-TSA000*	2400	100	3300	4800	2.6	10950	150	0.01	ES	19014038	AlSiC	Get Quote
TIM1500A2SM45-TSA000*	1500	90	4500	3000	2.8	8900	150	7.8	A2S	19014048	AlSiC	Get Quote
TG400FF08S0-S3A00	400		65	750	800	1.7	44.5	150	0.12	14011321	S0	Get Quote
TG400FF08S0-S4A00	400		65	750	800	1.7	44.5	150	0.12	14011321	S0	Get Quote
TG400FF08S2-S3A11	400		60	750	800	1.7	50.5	150	0.165(JF)	14011229.6	S2	Get Quote
TG600FF08S3-S3A01	600		65	750	1200	1.55	70	150	0.12(JF)	154.5126.532	S3	Get Quote
TG550FF08S3-S5A01	550		80	750	1100	1.1	37	175	0.16(JF)	154.5126.532	S3	Get Quote
TG650FF08S2-S5A01	650		80	750	1300	1.1	56.5	175	0.205(JF)	14011322.35	S2	Get Quote
TG660FF08S3-S4A03	660		80	750	1320	1.2	66.1	175	0.08	154.5126.532	S3	Get Quote
TG800HF08L4-S4A00	800		110	750	1600	1.62	92.8	175	0.05	79.35515.75	L4	Get Quote
TG820FF08S3-S4A11	820		80	750	1640	1.2	66.1	175	0.12(JF)	154.5126.532		Get Quote
TG820FF08S3-S5A01	820		65	750	1640	1.15	62.5	175	0.12(JF)	154.5126.532		Get Quote
TG950FF08S3-S5A01	950		95	750	1900	1.15	62.5	175	0.10(JF)	154.5126.532	S3	Get Quote
TG950FF08S3-S4A01	950		95	750	1900	1.2	66.1	175	0.10(JF)	154.5126.532	S3	Get Quote
TG600FF12S3-S5A01*	600		80	1200	1200	1.4	200	175	0.10(JF)	154.5126.532		Get Quote
TG600FF12S3-S4A01	600		80	1200	1200	1.5	211	175	0.10(JF)	154.5126.532		Get Quote
TG450HF12M1-S3A00	450		100	1200	900	1.65	142	150	0.052	151.86220.8		Get Quote
TG600HF12M1-G3A00	600		100	1200	1200	1.85	171	150	0.049	151.86220.8	M1	Get Quote
TG900HF12M1-S4A00	900		100	1200	1800	1.65	183	175	0.043	151.86220.8		Get Quote
TG1000HF08L5-R6A01*	1000		100	750	2000	1.1	60	175	70(JF)	1106325.5	L5	Get Quote
TG1200FF08S3-R6A02*	1200		100	750	2400	1.1	60	175	62(JF)	154.5126.532	S3	Get Quote
TG3000SW65ZF-T200	3000	90	6500	6000	3.4	/	135	0.0025	ZF	22822826.5	Mo	Get Quote
TG3000SW52ZF-R200	3000	90	5200	6000	3.1	47500	125	0.002	ZF	22822826.5	Mo	Get Quote
TG3000SW45ZC-P200	3000	90	4500	6000	2.3	39700	125	0.003	ZC	205.8205.833.4	Cu	Get Quote
TG2000SW45ZC-P200	2000	90	4500	4000	2.3	27900	125	0.0043	ZC	205.8205.833.4	Cu	Get Quote
TG1500SW45YB-P200	1500	90	4500	3000	2.3	19900	125	0.006	YB	φ190*33.4	Cu	Get Quote
TG5000SG45ZF-P200	5000	90	4500	10000	2.45	55800	135	0.00167	ZF	22822826.5	Mo	Get Quote
TIM1200FSM17-PSA011	1200	80	1700	2400	2.3	1300	125	0.012	FS	14013038	AlSiC	Get Quote
TIM1600FSM17-PSA011	1600	80	1700	3200	2.3	1800	125	0.009	FS	14013038	AlSiC	Get Quote
TIM2400ESM17-TSA000	2400	100	1700	4800	1.75	2840	150	0.0065	ES	19014038	AlSiC	Get Quote
TIM3600E2SM17-TSA000	3600	95	1700	7200	1.95	3680	150	0.0075	E2S	19014038	AlSiC	Get Quote
TIM2400N2SM17-TSA000	2400	95	1700	4800	1.95	2070	150	0.0137	N2S	14013038	AlSiC	Get Quote
TG1000HF17H1-S300	1000	100	1700	2000	1.85	980	150	0.02	H1	2508938	Cu	Get Quote
TG650HF17H2-S300	650	95	1700	1300	1.85	610	150	0.03	H2	171.88938	Cu	Get Quote
TG600HF17M1-S300	600	100	1700	1200	1.8	470	150	0.046	M1	151.86220.8	Cu	Get Quote
TG450HF17M1-S300	450	100	1700	900	1.8	381	150	0.055	M1	151.86220.8	Cu	Get Quote
TG500HF17M1-S310	500	100	1700	1000	1.85	410	150	0.06	M1	151.86220.8	Cu	Get Quote
TG300HF17M1-S300	300	100	1700	600	1.8	235	150	0.08	M1	151.86220.8	Cu	Get Quote
TG650CP17H2-S300	650	100	1700	1300	1.85	610	150	0.03	H2	171.88938	Cu	Get Quote
TG650PC17H2-S300	650	100	1700	1300	1.85	610	150	0.03	H2	171.88938	Cu	Get Quote
TG800HF17M1-S500	800	100	1700	1600	1.95	665	150	0.039	M1	151.86220.8	Cu	Get Quote
TG1400HF17H1-S300	1400	100	1700	2800	1.75	1300	150	0.0166	H1	2508938	Cu	Get Quote
TG1800HF17H1-S500	1800	100	1700	3600	2.2	2250	150	0.0165	H1	2508938	Cu	Get Quote
TG1400HF12H1-S300	1400	100	1200	2800	1.8	486	150	0.02	H1	2508938	Cu	Get Quote
TG900HF12H2-S300	900	100	1200	1800	1.8	300	150	0.0295	H2	171.88938	Cu	Get Quote
TG300HF12M1-S300	300	100	1200	600	1.65	98.9	150	0.078	M1	151.86220.8	Cu	Get Quote
TG600HF12M1-S300	600	100	1200	1200	1.7	194	150	0.049	M1	151.86220.8	Cu	Get Quote
TG450HF12W1-S400	450	100	1200	900	1.77	164.23	150	0.058	W1	106.461.430.9	Cu	Get Quote
TG300HF12W1-G300	300	100	1200	600	1.75	104.75	150	0.093	W1	106.461.430.9	Cu	Get Quote
TG600HF12W1-G300	600	100	1200	1200	1.75	209.5	150	0.0485	W1	106.461.430.9	Cu	Get Quote
TG800HF12W1-S400	800	100	1200	1600	1.5	298.6	150	0.0485	W1	106.461.430.9	Cu	Get Quote
TH400AN10U3-S500	400	/	950	800	1.4	/	150	/	U3	109.96216.4	/	Get Quote
TH200D3B10U3-S500	100	/	950	200	1.27	3.059	150	0.673	U3	109.96216.4	/	Get Quote

Type	A	@TC ℃	VCES V	ICRM A	@IC &TC=25℃ V	ESW mJ	TVJM ℃	RthJC FRD K/W	Code	Dimensions mm	Base Material	Get Quote
TFM750XDM65-D200	750	80	6500	1500	2.7	3300 （Erec）	125	0.018	XD	14013048	AlSiC	Get Quote
TFM1200XDM45-D200	1200	/	4500	2400	2.7	3900 （Erec）	125	0.016	XD	14013048	AlSiC	Get Quote
TFM1500XDM45-D200	1500	/	4500	3000	2.55	5300 （Erec）	150	0.016	XD	14013048	AlSiC	Get Quote
TFM1500NDM33-D200	1500	/	3300	3000	2.4	2600 （Erec）	150	0.015	ND	14013038	AlSiC	Get Quote
TF1500SF33K1-D200	1500	/	3300	3000	2.25	2200 （Erec）	150	0.0145	K1	1309038	AlSiC	Get Quote
TFM1000N2DM33-D200	1000	95	3300	2000	2.15	1800 (Erec)	150	0.021	ND	14013038	AlSiC	Get Quote
TFM3600E2SM17-D200	3600	95	1700	7200	1.85	1240 （Erec）	150	0.0095	E2S	19014038	AlSiC	Get Quote
TF100HF12T1-D300	100	/	1200	200	1.6	/	150	0.28	T1	943530	Cu	Get Quote

Type	V(BR)DSS V	ID A	TJ ℃	Tstg ℃	VGS(th) TJ=25℃ TJ=150℃ V	RDS(on)@VGS=17V TJ=25℃ TJ=150℃ mΩ	IDSS TJ=150℃ μA	Get Quote
TM330PES87A1	3300V	47	-40 ~ +150	-40 ~ +150	3	2	40	Get Quote
TM330PES95A1	3300V	32	-40 ~ +150	-40 ~ +150	3	2	80	Get Quote
TM120PES55A1	1200V	60	-55 ~ +175	-55 ~ +175	2.4	1.5	25	Get Quote
TM120PES44A4	1200V	50	-55 ~ +175	-55 ~ +175	2.4	1.5	30	Get Quote

Type	VDC V	VRRM V	IF(AVG) A	TJ ℃	Tstg ℃	VF TJ=25℃ TJ=150℃ V	IR TJ=150℃	IR TJ=150℃ μA	Get Quote
TS330PLS87A1	3300	3300	47	-40 ~ +150	-40 ~ +150	1.9	3.25	<100	Get Quote
TS330PLS66A2	3300	3300	32	-40 ~ +150	-40 ~ +150	1.85	3.1	<100	Get Quote
TS120PLS33A4	1200	1200	20	-40 ~ +150	-40 ~ +150	1.45	1.85	<20	Get Quote
TS120PLS22A0	1200	1200	10	-40 ~ +150	-40 ~ +150	1.45	1.85	<20	Get Quote

Type	A	@TC ℃ V	VCES A	ICRM V	@ IC & TC=25℃ mJ	@TVJM ℃ K/W	TVJM	RthJC	Code	Dimensions mm	Base Material	Get Quote
THM1600FSM17-PSA011	1600	85	1700	3200	2.5	960	125	0.009	FS	140×130×38	AlSiC	Get Quote
THM500GDM33-PSA011	500	85	3300	1000	2.1	1900	150	0.021	GD	160×130×38	AlSiC	Get Quote
THM1500ESM33-PSA012	1500	95	3300	3000	2	6035	150	0.008	ES	190×140×38	AlSiC	Get Quote
TM600FF12S3-W3A01	600	65	1200	1200	1.3	66.2	175	0.11(JF)	S3	154.5×126.5×32	Cu	Get Quote
TM600FF12S3-F2A01*	600	65	1200	1200	1.5	147	175	0.08(JF)	S3	154.5×126.5×32	Cu	Get Quote
TG660HF12L5-F2A01*	660	65	1200	1320	1.3	66.2	175	0.08(JF)	L5	110×63×25.5	Cu	Get Quote
TM500HF33X1-F100	500	90	3300	1000	1.9	590	150	0.036	X1	144×100×40	AlSiC	Get Quote
TM750HF33X2-F100	750	90	3300	1500	1.8	800	150	0.024	X2	144×100×40	AlSiC	Get Quote
