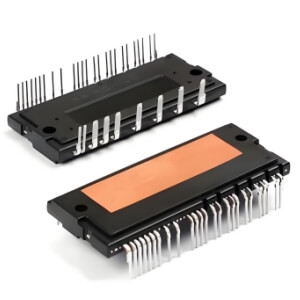

Highly integrated and efficient power modules are designed for flexible and durable compact solutions (with power ranging from tens of watts to 3kW), reducing design time and workload. It covers a wide range of voltage levels, current ratings, and topology structures
| Part Number | Topology | Breakdown Voltage (V) max | IC (A) (@ Tc=100°C) max | VCE(sat) (V) typ | VF (V) typ | PTOT (W) nom | Package size (mm) | Get Quote |
|---|---|---|---|---|---|---|---|---|
| A1C15S12M3 | Converter Inverter Brake (CIB) | 1200 | 15 | 1.95 | 3 | 142.8 | 62.8 x 33.8 | Get Quote |
| A1C15S12M3-F | Converter Inverter Brake (CIB) | 1200 | 15 | 1.95 | 3 | 142.8 | 62.8 x 33.8 | Get Quote |
| A1P25S12M3 | Sixpack | 1200 | 25 | 1.95 | 2.95 | 197 | 62.8 x 33.8 | Get Quote |
| A1P25S12M3-F | Sixpack | 1200 | 25 | 1.95 | 2.95 | 197 | 62.8 x 33.8 | Get Quote |
| A1P35S12M3 | Sixpack | 1200 | 35 | 1.95 | 2.95 | 250 | 62.8 x 33.8 | Get Quote |
| A1P35S12M3-F | Sixpack | 1200 | 35 | 1.95 | 2.95 | 250 | 62.8 x 33.8 | Get Quote |
| A1P50S65M2 | Sixpack | 650 | 50 | 1.95 | 1.85 | 208 | 62.8 x 33.8 | Get Quote |
| A1P50S65M2-F | Sixpack | 650 | 50 | 1.95 | 1.85 | 208 | 62.8 x 33.8 | Get Quote |
| A2C25S12M3 | Converter Inverter Brake (CIB) | 1200 | 25 | 1.95 | 2.95 | 197 | 62.8 x 56.7 | Get Quote |
| A2C25S12M3-F | Converter Inverter Brake (CIB) | 1200 | 25 | 1.95 | 2.95 | 197 | 62.8 x 56.7 | Get Quote |
| A2C35S12M3 | Converter Inverter Brake (CIB) | 1200 | 35 | 1.95 | 2.95 | 250 | 62.8 x 56.7 | Get Quote |
| A2C35S12M3-F | Converter Inverter Brake (CIB) | 1200 | 35 | 1.95 | 2.95 | 250 | 62.8 x 56.7 | Get Quote |
| A2C50S65M2 | Converter Inverter Brake (CIB) | 650 | 50 | 1.95 | 1.85 | 208 | 62.8 x 56.7 | Get Quote |
| A2C50S65M2-F | Converter Inverter Brake (CIB) | 650 | 50 | 1.95 | 1.85 | 208 | 62.8 x 56.7 | Get Quote |
| A2P75S12M3 | Sixpack | 1200 | 75 | 1.95 | 2.95 | 454.5 | 62.8 x 56.7 | Get Quote |
| A2P75S12M3-F | Sixpack | 1200 | 75 | 1.95 | 2.95 | 454.5 | 62.8 x 56.7 | Get Quote |
| A2U12M12W2-F1C | 3-Level | 1200 | - | - | 2.7 | 326 | 62.8 x 56.7 | Get Quote |
| A2U12M12W2-F2 | 3-Level | 1200 | - | - | 2.9 | - | 62.8 x 56.7 | Get Quote |
| A2U8M12W3-FC | 3-Level | 1200 | 100 | - | - | 320 | 62.8 x 56.7 | Get Quote |
| A1F25M12W2-F1 | Fourpack | 1200 | - | - | - | 127 | 62.8 x 33.8 | Get Quote |
| A2F12M12W2-F1 | Fourpack | 1200 | - | - | 2.9 | - | 62.8 x 56.7 | Get Quote |
| Part Number | Power Switches Type | Breakdown Voltage (V) max | RDS(on) (mΩ) (@ TJ=25°C) typ | RDS(on) (mΩ) (@ TJ=175°C) typ | Advanced features | Get Quote |
|---|---|---|---|---|---|---|
| ADP280120W3 | SiC | 1200 | 3.8 | 6.5 | - | Get Quote |
| ADP360120W3 | SiC | 1200 | 2.55 | 4.25 | - | Get Quote |
| ADP360120W3-L | SiC | 1200 | 2.55 | 4.25 | Long AC Bus Bar | Get Quote |
| ADP46075W3 | SiC | 750 | 1.6 | 2.6 | - | Get Quote |
| ADP480120W3 | SiC | 1200 | 1.9 | 3.35 | - | Get Quote |
| ADP480120W3-L | SiC | 1200 | 1.9 | 3.35 | Long AC Bus Bar | Get Quote |
| ADP61075W3 | SiC | 750 | 1.2 | 1.95 | - | Get Quote |
| ADP61075W3-L | SiC | 750 | 1.2 | 1.95 | Long AC Bus Bar | Get Quote |
| Part Number | Package | Breakdown Voltage (V) max | Collector Current (A) (@ Tc=25°C) max | Collector Current (A) (@ Tc=80°C) max | Current Rating max | VCE(sat) (V) (@ IC Characterization) typ | Switching Frequency (kHz) max | PTOT (W) nom | Get Quote |
|---|---|---|---|---|---|---|---|---|---|
| STGIB10CH60S-XZ | SDIP2B-26L | 600 | 15 | 10 | 30 | 1.65 | 20 | 66 | Get Quote |
| STGIB10CH60TS-L | SDIP2B-26L | 600 | 15 | 10 | 30 | 1.65 | 20 | 66 | Get Quote |
| STGIB10CH60TS-LZ | SDIP2B-26L | 600 | 15 | 10 | 30 | 1.65 | 20 | 66 | Get Quote |
| STGIB10CH60TS-XZ | SDIP2B-26L | 600 | 15 | 10 | 30 | 1.65 | 20 | 66 | Get Quote |
| STGIB15CH60S-L | SDIP2B-26L | 600 | 20 | 15 | 40 | 1.65 | 20 | 81 | Get Quote |
| STGIB15CH60TS-L | SDIP2B-26L | 600 | 20 | 15 | 40 | 1.65 | 20 | 81 | Get Quote |
| STGIB15CH60TS-LZ | SDIP2B-26L | 600 | 20 | 15 | 40 | 1.65 | 20 | 81 | Get Quote |
| STGIB15CH60TS-X | SDIP2B-26L | 600 | 20 | 15 | 40 | 1.65 | 20 | 81 | Get Quote |
| STGIB20M60S-XZ | SDIP2B-26L | 600 | 25 | 20 | 50 | 1.75 | 20 | 107 | Get Quote |
| STGIB20M60TS-L | SDIP2B-26L | 600 | 25 | 20 | 50 | 1.75 | 20 | 107 | Get Quote |
| STGIB30M60S-L | SDIP2B-26L | 600 | 35 | 30 | 70 | 1.65 | 20 | 125 | Get Quote |
| STGIB30M60S-XZ | SDIP2B-26L | 600 | 35 | 30 | 70 | 1.65 | 20 | 125 | Get Quote |
| STGIB30M60TS-L | SDIP2B-26L | 600 | 35 | 30 | 70 | 1.65 | 20 | 125 | Get Quote |
| STGIB8CH60TS-E | SDIP2B-26L | 600 | 12 | 8 | 24 | 1.91 | 20 | 50 | Get Quote |
| STGIB8CH60TS-L | SDIP2B-26L | 600 | 12 | 8 | 24 | 1.91 | 20 | 50 | Get Quote |
| STGIB8CH60TS-XZ | SDIP2B-26L | 600 | 12 | 8 | 24 | 1.91 | 20 | 50 | Get Quote |
| STGIF10CH60S-L | SDIP2F-26L | 600 | 15 | 10 | 30 | 1.65 | 20 | 33 | Get Quote |
| STGIF10CH60TS-L | SDIP2F-26L | 600 | 15 | 10 | 30 | 1.65 | 20 | 33 | Get Quote |
| STGIF5CH60S-X | SDIP2F-26L | 600 | 8 | 5 | 16 | 1.7 | 20 | 30 | Get Quote |
| STGIF5CH60TS-L | SDIP2F-26L | 600 | 8 | 5 | 16 | 1.7 | 20 | 30 | Get Quote |
| STGIF5CH60TS-X | SDIP2F-26L | 600 | 8 | 5 | 16 | 1.7 | 20 | 30 | Get Quote |
| STGIF7CH60S-X | SDIP2F-26L | 600 | 10 | 7 | 20 | 1.7 | 20 | 31 | Get Quote |
| STGIF7CH60TS-L | SDIP2F-26L | 600 | 10 | 7 | 20 | 1.7 | 20 | 31 | Get Quote |
| STGIF7CH60TS-LZ | SDIP2F-26L | 600 | 10 | 7 | 20 | 1.7 | 20 | 31 | Get Quote |
| STGIF7CH60TS-X | SDIP2F-26L | 600 | 10 | 7 | 20 | 1.7 | 20 | 31 | Get Quote |
| STIB1060DM2T-LZ | SDIP2B-26L | 600 | - | - | 50 | - | 20 | 78 | Get Quote |
| STIB1560DM2T-LZ | SDIP2B-26L | 600 | - | - | 68 | - | 20 | 113 | Get Quote |
| STGIB20M60TS-LZ | SDIP2B-26L | 600 | 25 | 20 | 50 | 1.75 | 20 | 107 | Get Quote |
| STGIB30M60TS-LZ | SDIP2B-26L | 600 | 35 | 30 | 70 | 1.65 | 20 | 125 | Get Quote |
| Part Number | Package | Breakdown Voltage (V) max | Collector Current (A) (@ Tc=25°C) max | Current Rating max | VCE(sat) (V) (@ IC Characterization) typ | Switching Frequency (kHz) max | PTOT (W) nom | Get Quote |
|---|---|---|---|---|---|---|---|---|
| STGIK10M120T | SDIPHP-30L | 1200 | 10 | 20 | 1.6 | 20 | 125 | Get Quote |
| STGIK50CH65T | SDIPHP-30L | 650 | 50 | 100 | 1.8 | 20 | 150 | Get Quote |
| STGIK50CH65T2 | SDIPHP-30L | 650 | 50 | 100 | 1.7 | 20 | 150 | Get Quote |
| Part Number | Package | Breakdown Voltage (V) max | Collector Current (A) (@ Tc=25°C) max | Current Rating max | VCE(sat) (V) (@ IC Characterization) typ | Switching Frequency (kHz) max | PTOT (W) nom | Get Quote |
|---|---|---|---|---|---|---|---|---|
| STGIPN3H60 | NDIP-26L | 600 | 3 | 18 | 2.15 | 20 | 9.7 | Get Quote |
| STGIPN3H60A | NDIP-26L | 600 | 3 | 18 | 2.15 | 20 | 9.7 | Get Quote |
| STGIPN3H60AT | NDIP-26L | 600 | 3 | 18 | 2.15 | 20 | 9.7 | Get Quote |
| STGIPN3H60T-H | NDIP-26L | 600 | 3 | 18 | 2.15 | 20 | 9.7 | Get Quote |
| STGIPNS3H60T-H | NSDIP-26L | 600 | 3 | 18 | 2.15 | 20 | 9 | Get Quote |
| STGIPQ3H60T-HL | N2DIP-26L | 600 | 3 | 6 | 2.15 | 20 | 12 | Get Quote |
| STGIPQ3H60T-HZ | N2DIP-26L | 600 | 3 | 6 | 2.15 | 20 | 12 | Get Quote |
| STGIPQ3H60T-HZS | N2DIP-26L | 600 | 3 | 6 | 2.15 | 20 | 12 | Get Quote |
| STGIPQ4C60T-HL | N2DIP-26L | 600 | 6 | 9 | 1.79 | 20 | 12.5 | Get Quote |
| STGIPQ4C60T-HZ | N2DIP-26L | 600 | 6 | 9 | 1.79 | 20 | 12.5 | Get Quote |
| STGIPQ5C60T-HL | N2DIP-26L | 600 | 5 | 10 | 1.7 | 20 | 13.6 | Get Quote |
| STGIPQ5C60T-HLS | N2DIP-26L | 600 | 5 | 10 | 1.7 | 20 | 13.6 | Get Quote |
| STGIPQ5C60T-HZ | N2DIP-26L | 600 | 5 | 10 | 1.7 | 20 | 13.6 | Get Quote |
| STGIPQ5C60T-HZS | N2DIP-26L | 600 | 5 | 10 | 1.7 | 20 | 13.6 | Get Quote |
| STGIPQ8C60T-HZ | N2DIP-26L | 600 | 8 | 16 | 2 | 20 | 19.2 | Get Quote |
| STIPNS1M50T-H | NSDIP-26L | 500 | - | 2 | - | 20 | 10 | Get Quote |
| STIPNS2M50T-H | NSDIP-26L | 500 | - | 4 | - | 20 | 10.6 | Get Quote |
| STIPQ3M60T-HZS | N2DIP-26L | 600 | - | 6 | - | 20 | 11.7 | Get Quote |
| STIPQ5M60T-HZ | N2DIP-26L | 600 | - | 10 | - | 20 | 12.8 | Get Quote |
